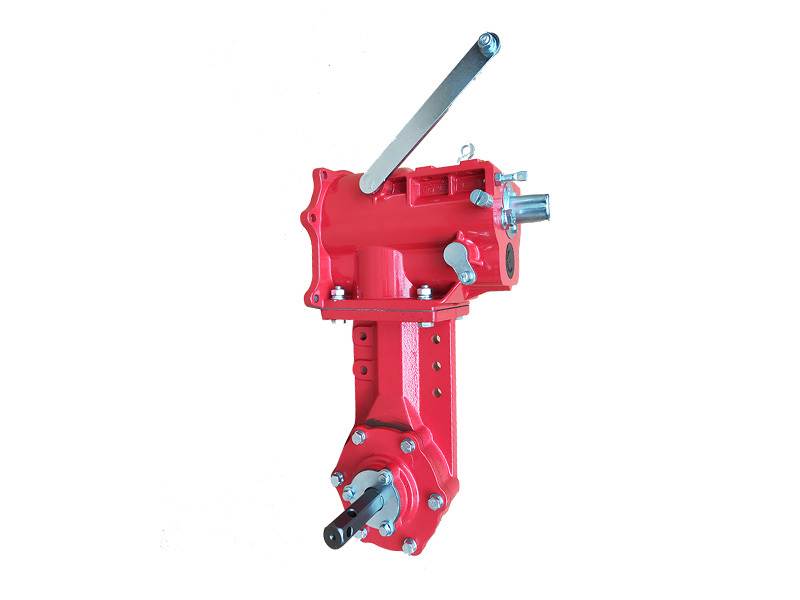

HJ750 transmission assembly
The transmission box can control acceleration and deceleration, and change the direction of transmission.
Classification:
Multi-functional series
Key words: mini-tiller gearbox | agricultural machinery gearbox assembly | small agricultural machinery gearbox
Message consultation
Detailed description
| Name and Model | HJ750 Transmission Assembly | |
| Gear Speed (r/min) | Forward Gear 1: 35 | Rotary Tilling Gear: 325 |
| Forward Gear 2: 68 | Neutral: 0 | |
| Neutral: 0 | Trenching Gear: 325 | |
| Slow Reverse Gear: 34 | ||
| Weight | 34kg | |
| Transmission Method | Full Gear Transmission | Chain (50 Links) |
| Power Input Method | Rectangular Spline | |
The transmission box can control acceleration and deceleration, change the direction of transmission, and transmit force vertically to another rotating shaft through two sector gears; at the same time, it can also change the torque, where under the same power, the faster the speed, the smaller the torque on the shaft; in addition, the transmission box also has a clutch function, which can separate originally meshed gears to achieve separation between the engine and the load.
